ucf外球面軸承型號

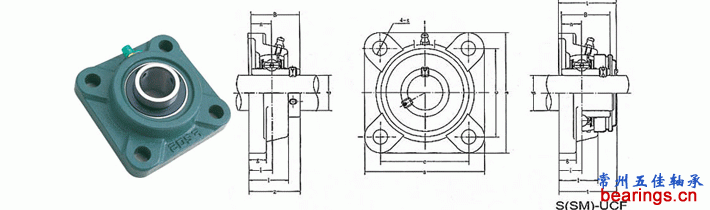

ucf外球面軸承，軸承座是方形外球面軸承。
ucf外球面軸承型號
上一篇：ucp外球面軸承 下一篇：UCFL外球面軸承
ucf外球面軸承型號
| 軸承代號 | 尺寸 | 重量 | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| d | a | e | i | g | l | s | z | t | b | n | |||
| ucF203 | 17 | 86 | 64 | 15 | 12 | 25.5 | 12 | 33.3 | 37.5 | 31 | 12.7 | 0.58 | |
| ucF204 | 20 | 86 | 64 | 15 | 12 | 25.5 | 12 | 33.3 | 37.5 | 34.1 | 14.3 | 0.56 | |
| UCF205 | 25 | 95 | 70 | 16 | 14 | 27 | 12 | 35.8 | 40 | 34.1 | 14.3 | 0.56 | |
| UCF206 | 30 | 108 | 83 | 18 | 14 | 31 | 12 | 40.2 | 44.5 | 38.1 | 15.9 | 1.12 | |
| UCF207 | 35 | 117 | 92 | 19 | 16 | 34 | 14 | 44.4 | 48.5 | 42.9 | 17.5 | 1.46 | |
| UCF208 | 40 | 13 | 102 | 21 | 16 | 36 | 16 | 51.2 | 55.5 | 49.2 | 19 | 1.84 | |
| UCF209 | 45 | 137 | 105 | 22 | 18 | 38 | 16 | 52.2 | 56.5 | 49.2 | 19 | 2.15 | |
| UCF210 | 50 | 143 | 111 | 22 | 18 | 40 | 16 | 54.6 | 59.5 | 51.6 | 19 | 2.42 | |
| UCF211 | 55 | 162 | 130 | 25 | 20 | 43 | 19 | 58.4 | 63 | 55.6 | 22.2 | 3.31 | |
| UCF212 | 60 | 175 | 143 | 29 | 20 | 48 | 19 | 68.7 | 73.5 | 65.1 | 25.4 | 4.28 | |
| UCF213 | 65 | 187 | 149 | 30 | 22 | 50 | 19 | 69.7 | 74.5 | 65.1 | 25.4 | 4.99 | |
| UCF214 | 70 | 193 | 152 | 31 | 22 | 54 | 19 | 75.4 | 81.5 | 74.6 | 30.2 | 5.85 | |
| UCF215 | 75 | 200 | 159 | 34 | 22 | 56 | 19 | 78.5 | 83.5 | 77.8 | 33.3 | 6.91 | |
| UCF216 | 80 | 208 | 165 | 34 | 22 | 58 | 23 | 83.3 | 88.5 | 82.6 | 33.3 | 7.50 | |
| UCF217 | 85 | 220 | 175 | 36 | 24 | 63 | 23 | 87.6 | 92.6 | 85.7 | 34.1 | 9.66 | |
| UCF218 | 90 | 235 | 187 | 40 | 24 | 68 | 23 | 96.3 | 101.5 | 96 | 39.7 | 12.06 | |
